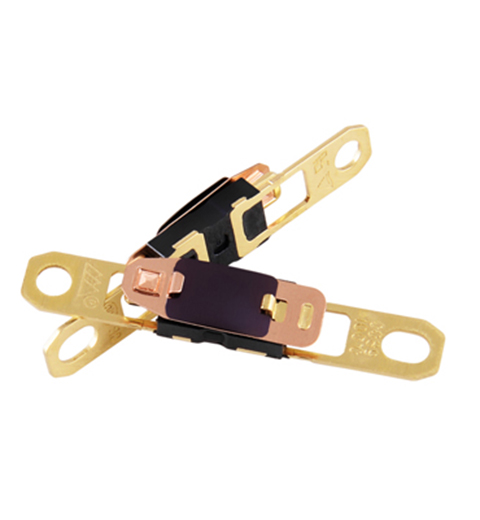

heat protector-CCS9


NAME:CCS9

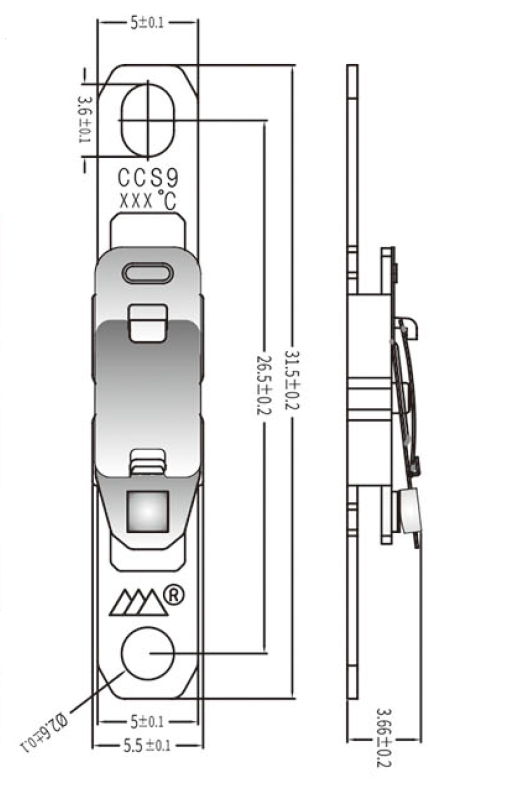

Product Size
Product advantages
● Structure patent product, patent number: ZL201320793281.1
● The main structure is integrated injection molding, the structure is stable and not loose
● Square contact, longer life and greater current carrying capacity
● High action consistency, no flashing

product description
CCS9 is a temperature-type protector. When the temperature rises due to abnormal electrical appliances, the heat generated is transferred to the bimetallic element. When the bimetallic sheet reaches the operating temperature setting value, it quickly cuts off the circuit. The bimetal element automatically resets the circuit;

Application range
Products are widely used in hair dryers, electric heaters, electric ovens, clothes dryers, air purifiers and other products.

Technical Parameters
Switch type: normally closed
Rated voltage and current: AC250V / 12A AC125V / 20A
Operating temperature: 50 ℃ -160 ℃ (every 5 ℃ is a file)
Standard tolerance: ± 3 ℃ ± 5 ℃
Reset temperature: 2/3 of the operating temperature, can be customized
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Life: ≥10000 times


Certification

Model Description
