Product advantages
● The product is small and easy to install;
● With power failure protection and delay protection function;
● The combination of bimetallic strip and heating wire has a quick tripping property;
● Various terminal installations are more flexible and extensive: co-directional and counter-directional riveting, co-directional and counter-directional inserts;
product description

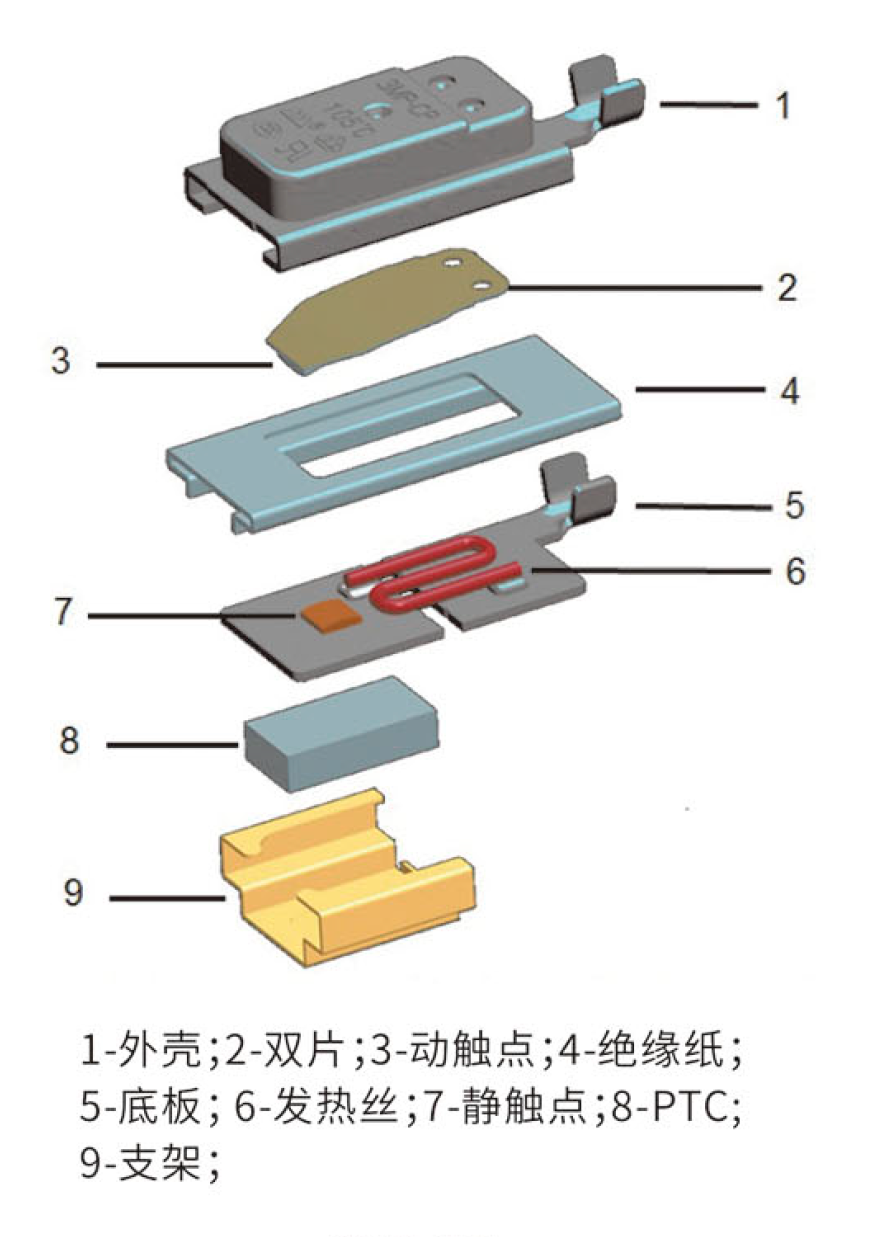

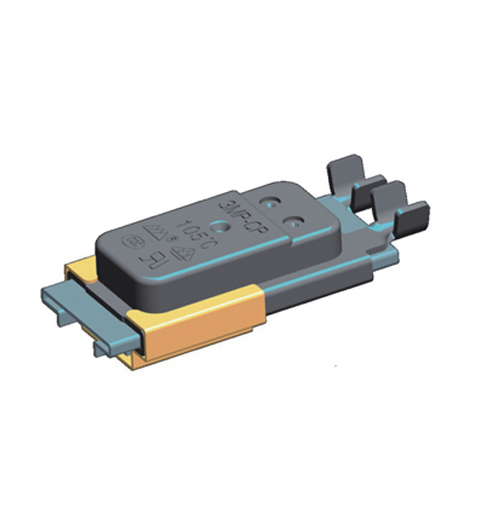

3MP-CP series thermal protector / thermostat: equipped with PTC heating element, it is a manual reset protector. When the temperature or current exceeds the set value of the protector, the 3MP-CP protector will quickly cut off the circuit, PTC Start heating to keep the contacts off and on until the power is completely cut off, the PTC temperature drops to protect the contacts from closing and return to the operating state; the trip time and overcurrent can be customized according to customer requirements. The life of the thermostat can be customized according to the current used by the customer. Products are widely used in motors, power tools; vacuum cleaners, washing machines, clothes dryers; wall breakers, juicers, mixers; window motors, sunroof motors, split-phase motors, capacitor starting motors, etc.
Technical Parameters
Switch type: normally closed
Rated voltage and current: 125V AC 12A / 250V AC 8A / 36V DC 20A
Operating temperature: 45 ℃ -185 ℃ (every 5 ℃ is a file)
Standard tolerance: ± 3 ℃ ± 5 ℃
Reset temperature: power-on reset
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Life: ≥10000 times
Certification

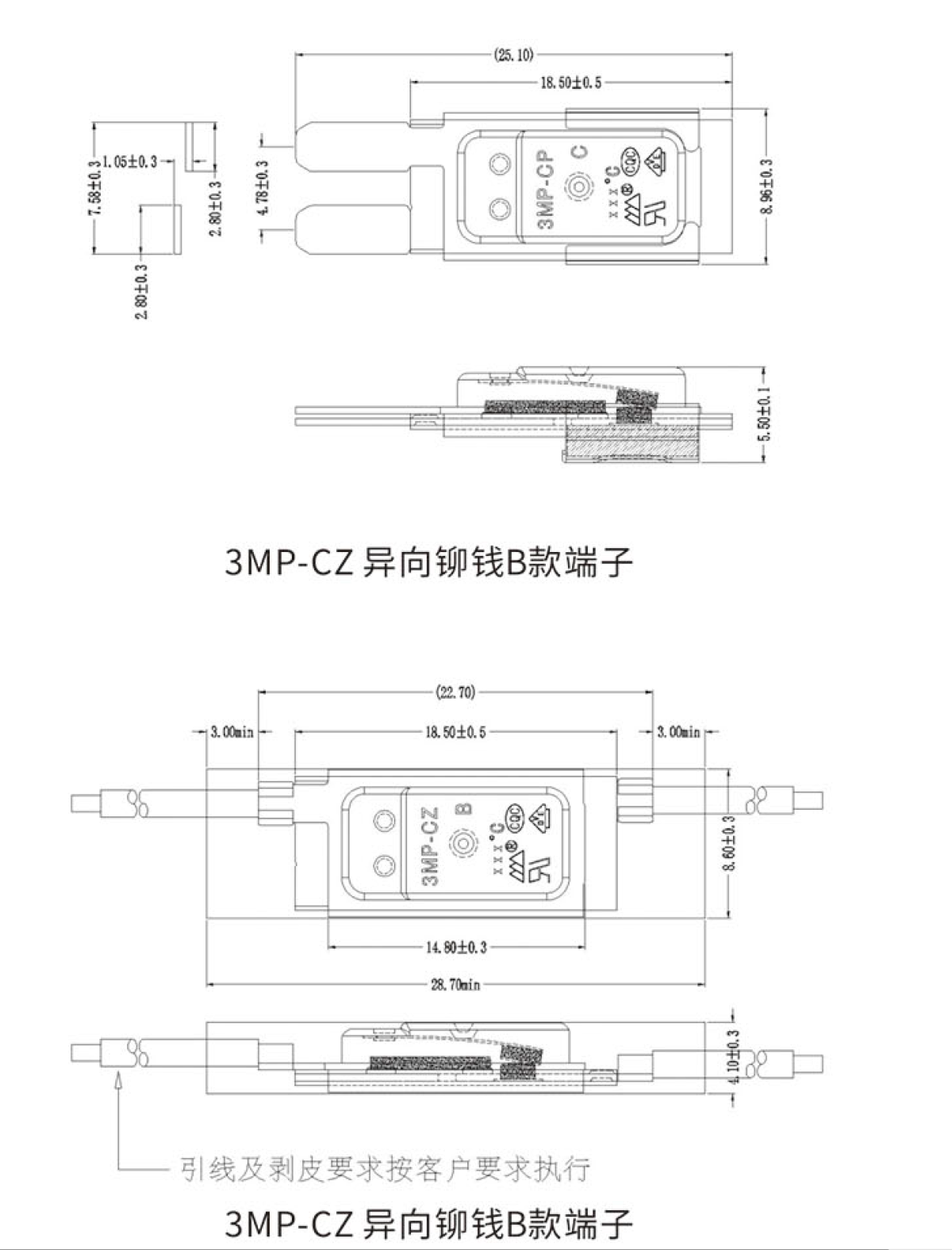

Product Size

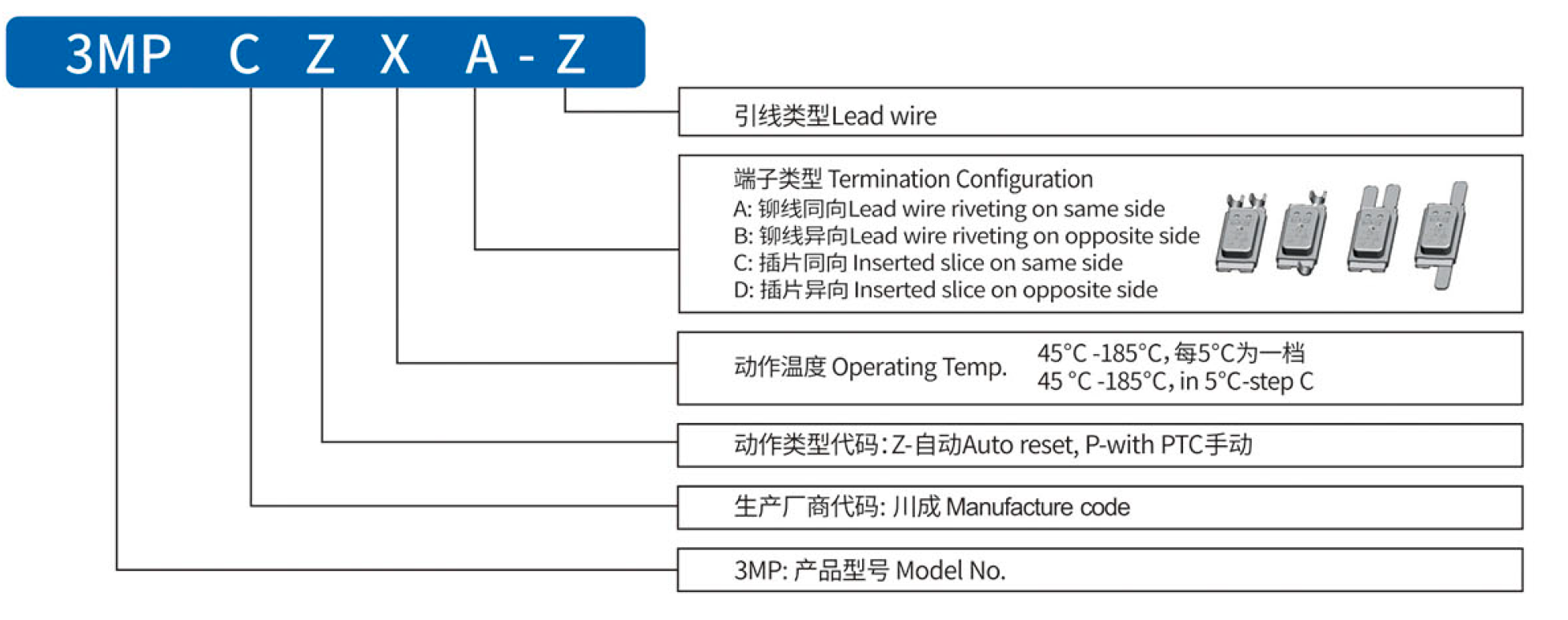

Model Description
