product description

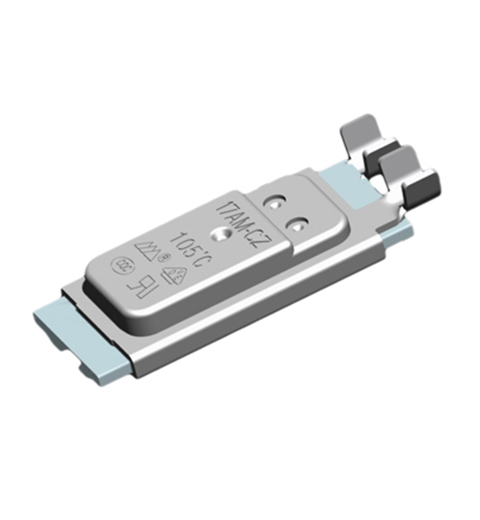

17 AM-CZ series thermal protector / thermostat has dual protection of overheat and overload. When the temperature or current rises to reach the set disconnection temperature, the bimetal will quickly cut off the circuit to form protection. When the temperature drops to the rated reset temperature value of the product, the dynamic and static contacts are closed and the circuit is re-conducted. Trip time, over current size. The life of the thermostat can be customized according to customer requirements.
Technical Parameters
Switch type: normally closed
Rated voltage and current: 125V AC 18A / 250V AC 12A 36V DC 20A
Operating temperature: 45 ℃ -185 ℃ (every 5 ℃ is a file)
Standard tolerance: ± 3 ℃ ± 5 ℃
Reset temperature: 2/3 of the operating temperature, can be customized
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Life: ≥10000 times

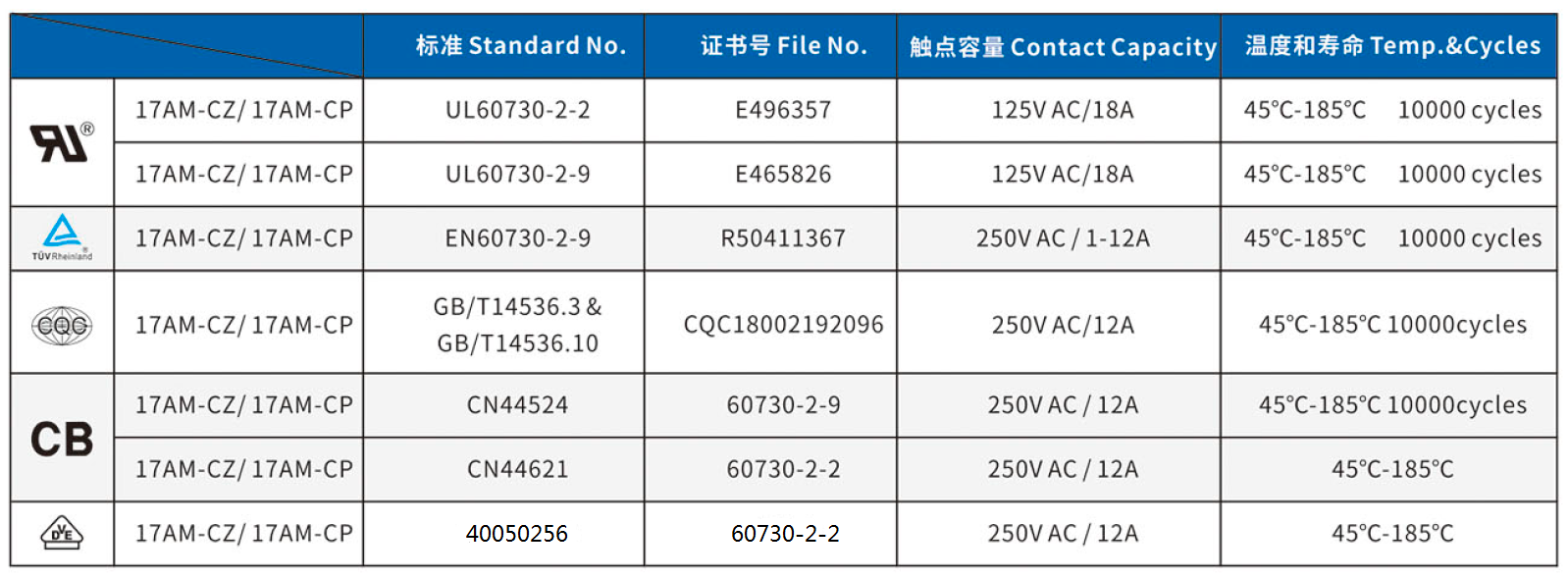

Certification

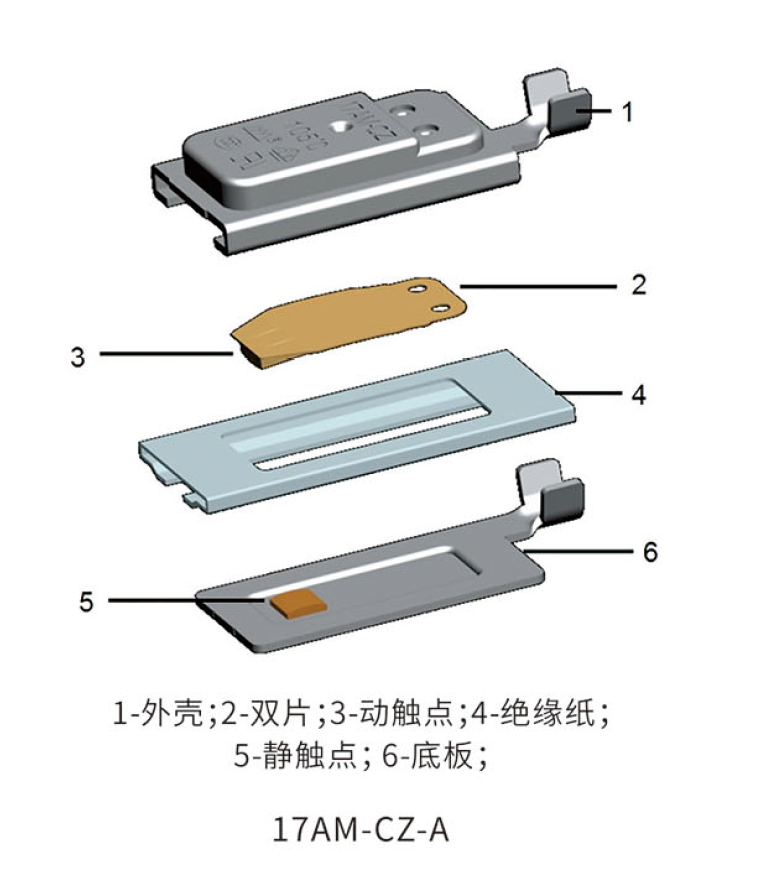

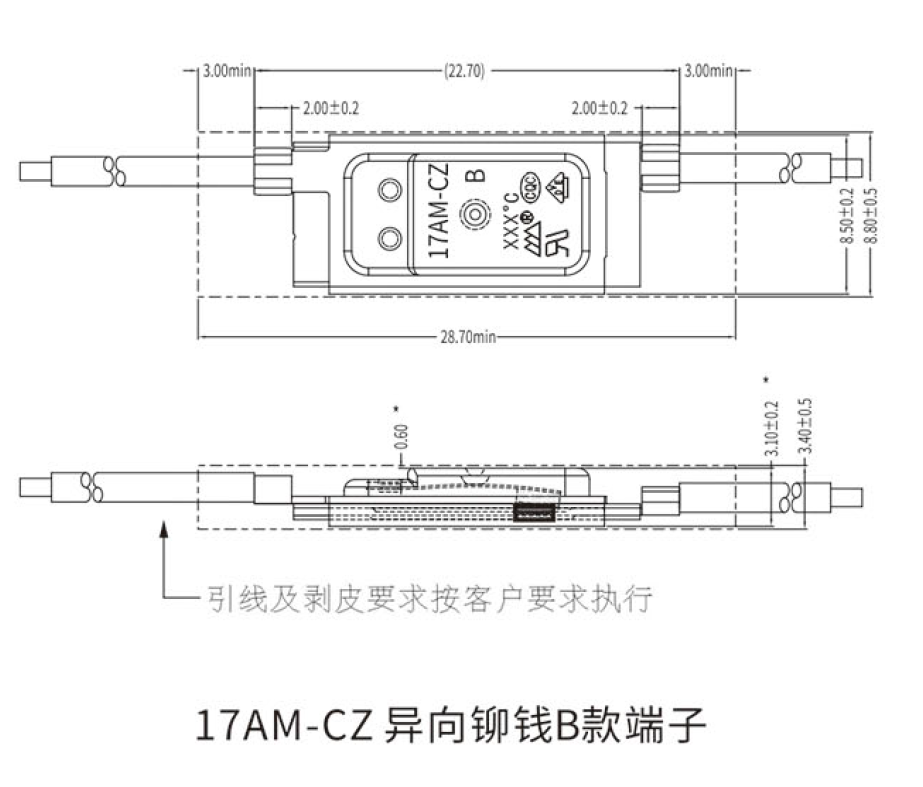

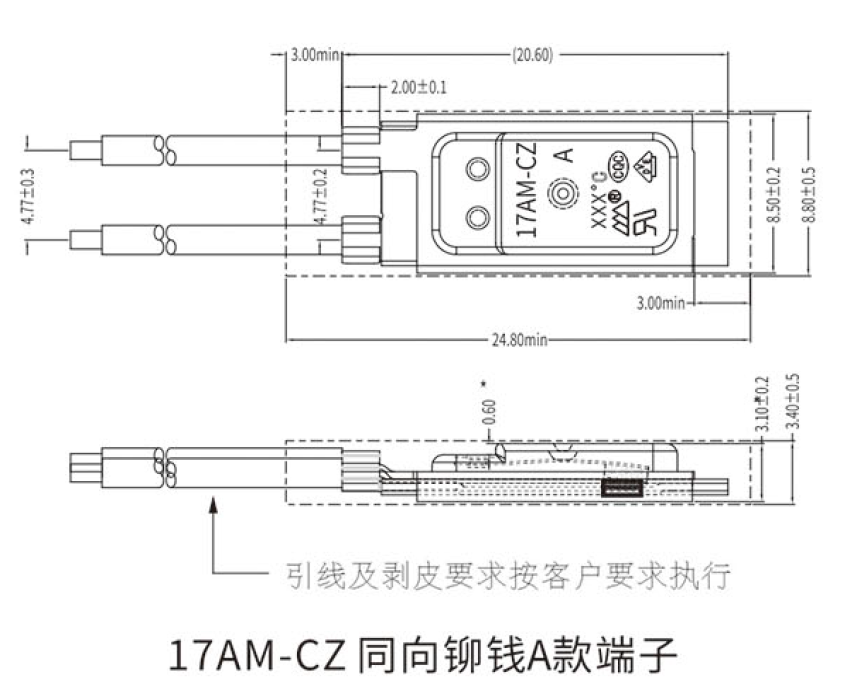

Structural outline drawing

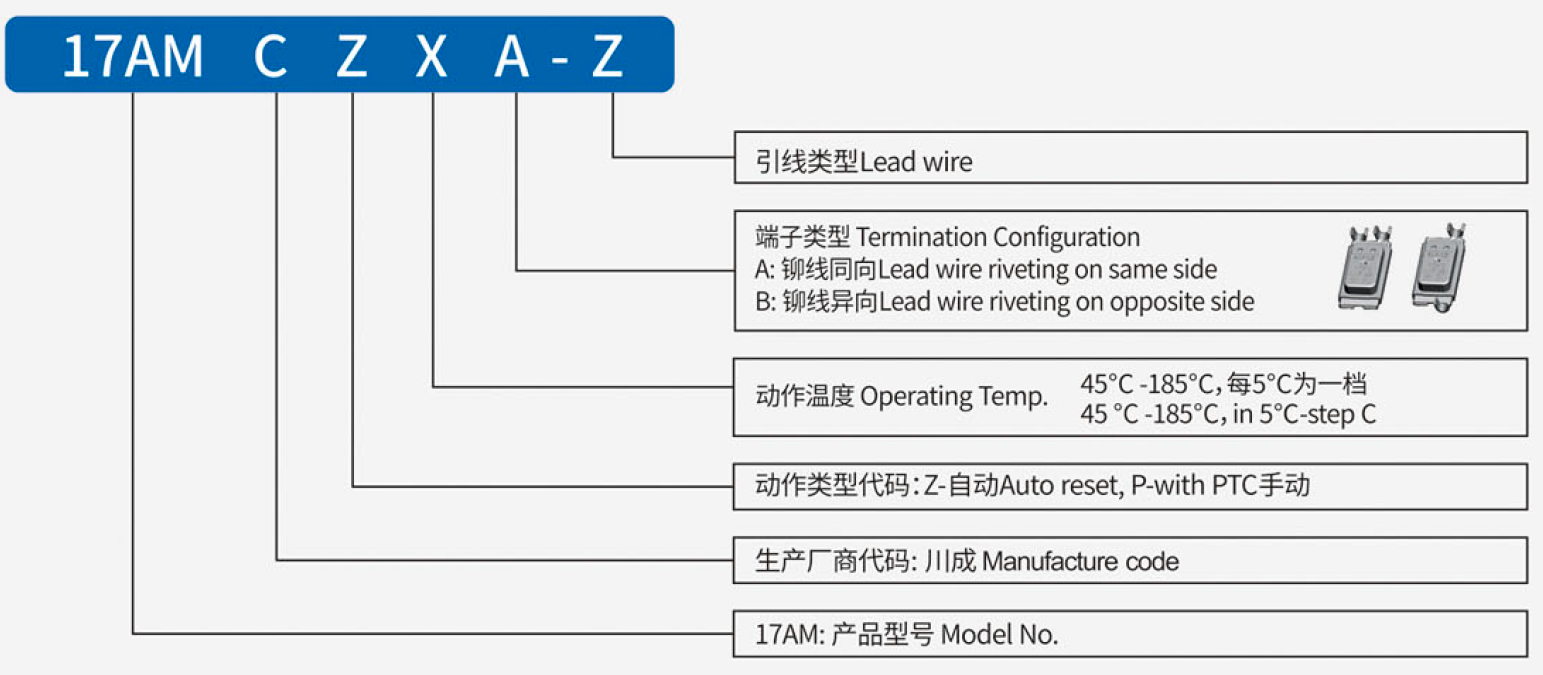

Model Description
